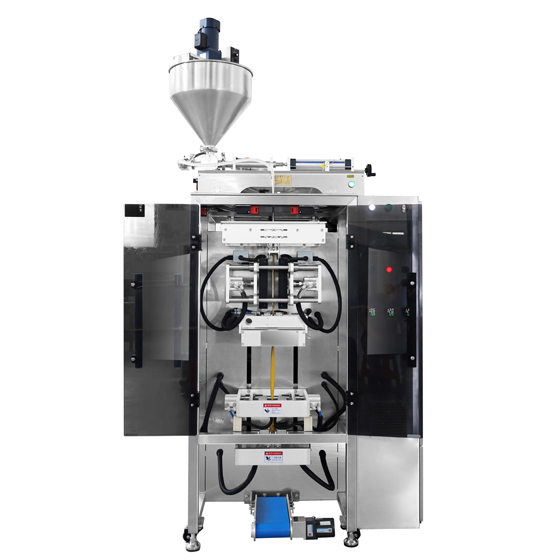

Single Stick Sauce Packaging Machine

Fully intelligent single stick packs liquid packaging machine,Comply with GMP production standards, the whole machine is CE certified, and the electrical configuration is CUL certified.The whole machine is made of SUS304 stainless steel, and the part in contact with the material is made of SUS316.

GET QUOTE

Parameter
Application
Advantage
Video

Machine Name	Shaped Sachet liquid packing machine
Model	LC300F+9832G-06N
No. of Lanes	1
Metering system	Piston pump
Bags/Minute	20-80 cut/min
Film roll width	Max.300mm
Film roll inner diameter	75mm
Film roll outer diameter	Max.300mm
Bag width	50-140mm
Bag length	50-180mm
Sealed type	Four-sided seal
Cut type	Fillet cut / flat cut / serrated cut
Power	220V 1P 50 or 60HZ/5KW
Air consumption	16-20L/min（0.6-0.8MPa）
Machine weight	320KG
Film material thickness	0.06-0.1 mm
Film material	OPP/CPP, OPP/PE, BOPP/VMPET/PE etc.
Optional	Diaphragm pump/Ribbon coding machine/ Vacuum feeding machine/laser marking machine/ Finished product conveyor/Magnetic pump filling machine

It can be widely used in cosmetics, food, medicine, health care products and other industries. This product is suitable for the packaging of various liquids, solid-liquid coexisting creams (soy sauce, tomato sauce, honey, jam (with residue), face cream, facial cleanser, shower gel, etc.).

1.Efficient anti-fingerprint,the device is easy to clean.

2. the overall film frame, the film tension control system ensures the stability of bag making.

3.programmable bus system + bus servo, fast response and more accurate.

4.The color sensor is used to grab the color punctuation points of the packaging film to ensure the integrity of the pattern.

5. In response to the requirements of Industry 4.0 trend, it can be connected to SCADA and MES systems.

6.12 commonly used operation languages,simple operation, with equipment fault prompt, self-diagnosis function.

7.Comply with GMP production standards, the whole machine is CE certified, and the electrical configuration is CUL certified.

8.The whole machine is made of SUS304 stainless steel, and the part in contact with the material is made of SUS316.

9.bus type temperature module and independent temperature control, temperature display and setting are operated in the touch screen.

10.Automatic identification system for film breakage and film shortage,automatic alarm shutdown, film roll correction and docking device.

11.all parts in contact with the packaged material can be quickly disassembled and installed.

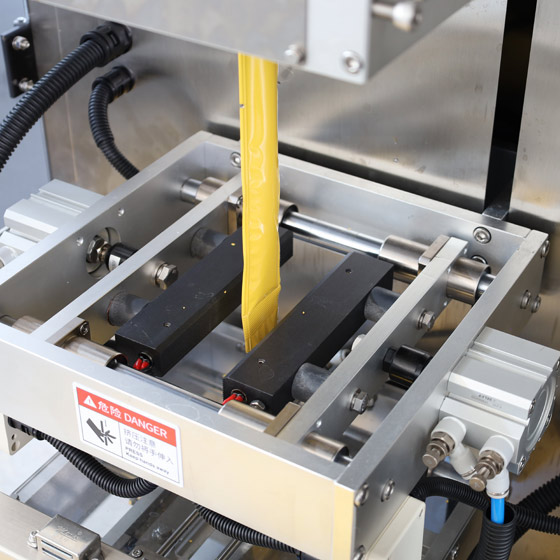

12.Vertical 45° sealing device has good longitudinal sealing effect and can be opened from the middle to both sides for easy maintenance.
