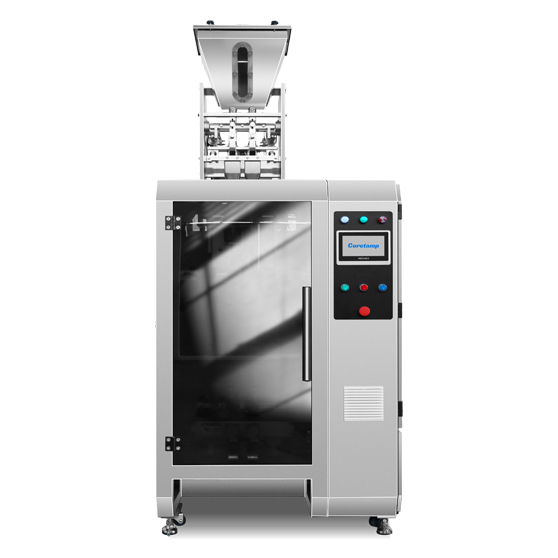

Single/2 Lane Granule Packaging Machine

The machine is suitable for the packaging of various granular materials with uniform density (granulated sugar, pharmaceutical granules, coffee granules, granule desiccant, etc.).
The equipment has the characteristics of fast packaging speed, high precision, low energy consumption and labor saving.
It can be widely used in cosmeceutical, food, pharmaceutical, health care products and other industries.

GET QUOTE

Parameter
Application
Advantage
Video

Machine Name	multi lane granule pack machine
Model	LC240B
No. of Lanes	1 / 2
Metering system	Swinging measuring cup
Bags/Minute	20-80 cut/min
Film roll width	Max.240mm
Film roll inner diameter	75mm
Film roll outer diameter	Max.400mm
Bag width	16-50mm
Bag length	40-160mm

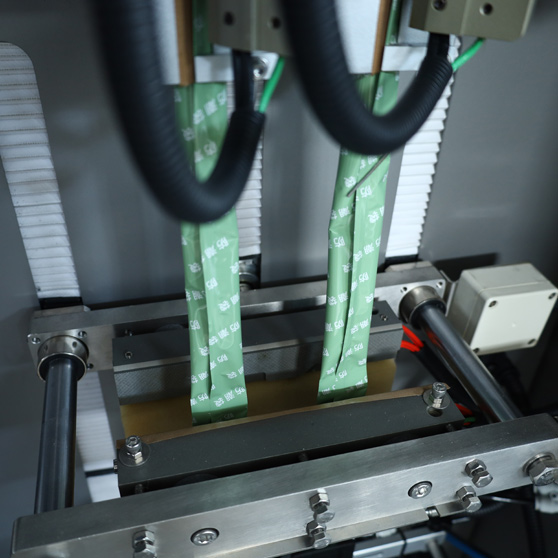

Sealed type	Back seal/triple seal
Cut type	Fillet cut / flat cut / serrated cut
Power	220V 1P 50 OR 60HZ/11KW
Air consumption	65-80L/min（0.6-0.8MPa）
Machine weight	320KG
Film material thickness	0.06-0.1 mm
Film material	OPP/CPP, OPP/PE, BOPP/VMPET/PE etc.
Optional	Diaphragm pump/Ribbon coding machine/ Vacuum feeding machine/laser marking machine/ Finished product conveyor/ Magnetic pump filling machine

The machine is suitable for the packaging of various granular materials with uniform density (granulated sugar, pharmaceutical granules, coffee granules, granule desiccant, etc.).The equipment has the characteristics of fast packaging speed, high precision, low energy consumption and labor saving.It can be widely used in cosmeceutical, food, pharmaceutical, health care products and other industries

1.Efficient anti-fingerprint，the device is easy to clean.

2.Automatic deviation correction，the overall film frame, the film tension control system ensures the stability of bag making.

3.programmable bus system + bus servo, fast response and more accurate.

4.The color sensor is used to grab the color punctuation points of the packaging film to ensure the integrity of the pattern.

5.In response to the requirements of Industry 4.0 trend, it can be connected to SCADA and MES systems.

6.12 commonly used operation languages，simple operation, with equipment fault prompt, self-diagnosis function.

7.Comply with GMP production standards, the whole machine is CE certified, and the electrical configuration is CUL certified.

8.The whole machine is made of SUS304 stainless steel, and the part in contact with the material is made of SUS316.

9.bus type temperature module and independent temperature control, temperature display and setting are operated in the touch screen.

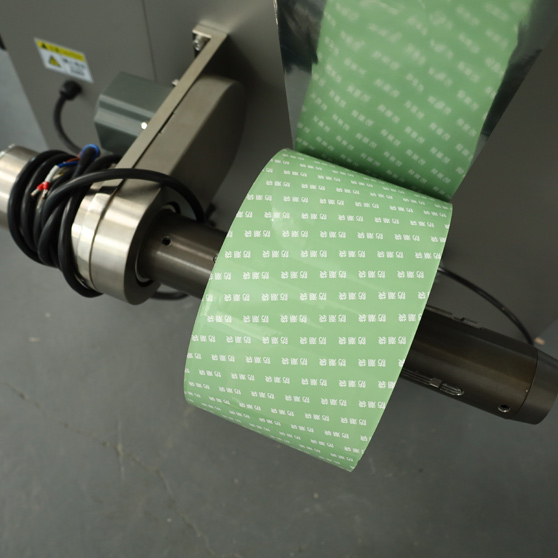

10.Automatic identification system for film breakage and film shortage: automatic alarm shutdown, film roll correction and docking device.

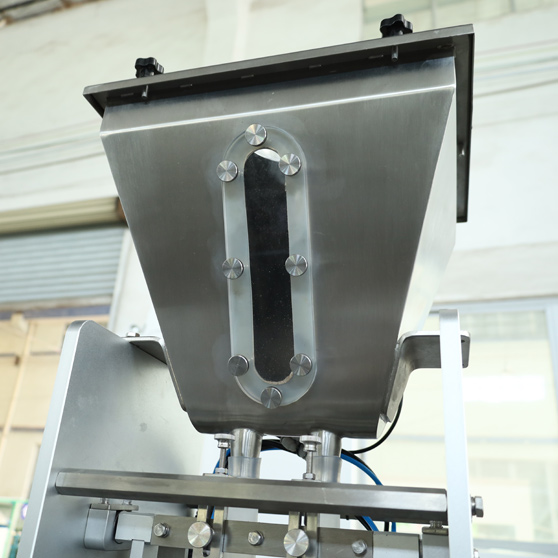

11.The particle filling system adopts a swing measuring cup measuring device, which is made of SUS316L stainless steel, which has the characteristics of high precision and high speed filling. Each column can be adjusted individually, alternating the feeding and filling methods, so as to ensure accuracy and speed. Easy to disassemble and assemble, easy to clean or clean every shift.
