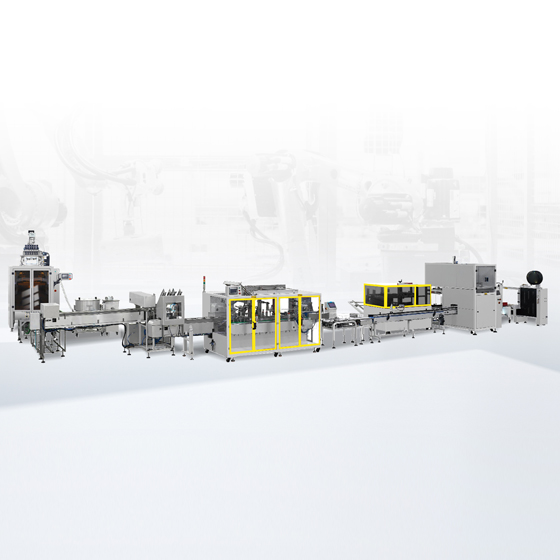

Multi-lane Automatic Stick Packaging Line

Multi-lane Automatic Stick Packaging Line

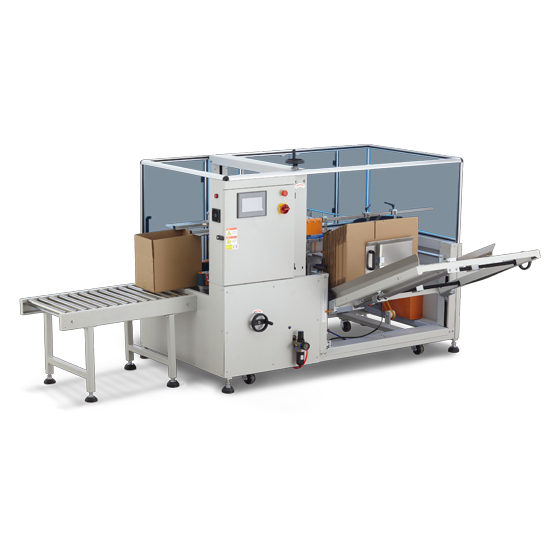

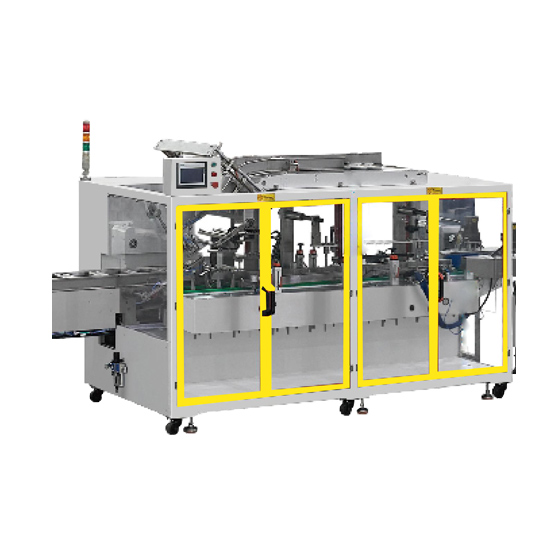

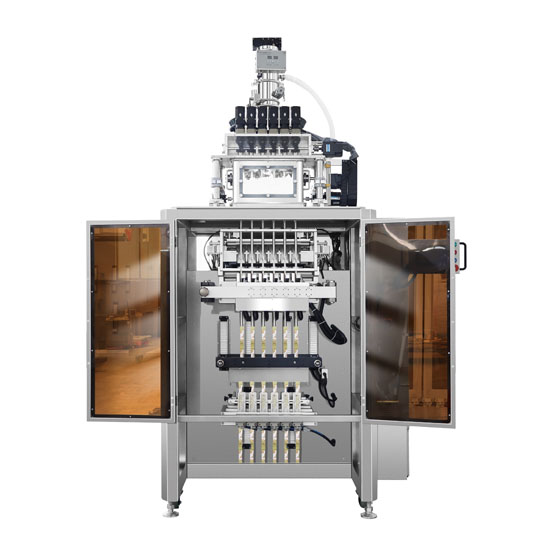

packing machines complete the inner bag packaging and output the automatic material handling conveyor arranges the inner bag according to the number of boxes and arrangement requirements → Place the inner bag on the conveyor of the box filling machine → Prepare to pack the inner bag automatically after the box is unpacked, the automatic box loading automatic unpacking machine automatically sends the inner bag to the packing machine. After the box is rechecked, the automatic packing machine automatically sends the packing machine to the automatic folding and sealing machine and tape punching machine to seal and seal the inner bag Take and send.

GET QUOTE

Parameter
Application
Advantage
Video

Machine Name	multi-line automatic packing production line
Bags/Minute	20-80 cut/min
Film roll width	Max.500mm
Film roll inner diameter	75mm
Film roll outer diameter	Max.400mm
Bag width	16-50mm
Bag length	40-160mm
Sealed type	Back seal/triple seal
Cut type	Fillet cut / flat cut / serrated cut
Power	220V 1P 50 or 60HZ/11KW
Air consumption	65-80L/min（0.6-0.8MPa）
Film material thickness	0.06-0.1 mm
Film material	OPP/CPP, OPP/PE, BOPP/VMPET/PE etc.
Optional	Anti-static device/Ribbon coding machine/ Vacuum feeding machine/laser marking machine/ Finished product conveyor/Screw air compressor

This machine is suitable for the industry: suitable for automatic metering and packaging of granular materials in food, medicine and chemical products, which can prevent oxidation, mildew, corruption, moisture, etc., and extend the storage period of products with quality and freshness.

1. Efficient fingerprint prevention: The device is easy to clean
2. Automatic recognition system for broken or missing film: automatic alarm shutdown, film rolling correction docking device
3. The working environment is clean, with low noise, and the production of bags, sealing, packaging, and printing date are completed in one go.
4. The packaging machine can automatically complete functions such as product automatic measurement, automatic bag making, sealing, coding, cutting, etc.
5. Automatic equipment failure alarm, the machine automatically stops when the protective cover is not closed, in compliance with CE safety standards.
6. Automatic correction: The overall film frame and supply film tension control system ensure stable bag making
7. System configuration: Adopting programmable bus system+bus servo, fast response and more accurate
8. Color control: Using color sensors to capture the color dots on the packaging film, ensuring the integrity of the pattern
9. Applicable to digital factories: In response to the trend requirements of Industry 4.0, it can be connected to SCADA and MES systems
10.12 Common Operating Languages: Easy to operate, with device fault prompts and self diagnostic functions
11. Safety and Certification: Compliant with GMP production standards, CE certified for the entire machine in the European Union, and CUL certified for electrical configuration
12. Food grade stainless steel: The entire machine is made of SUS304 stainless steel, and the contact material part is made of SUS316
13. Temperature control method: Bus type temperature module with independent temperature control, temperature display and setting are operated within the touch screen
14. Adopting motion bus PLC control, combined with multilingual touch screen display, the operation is intuitive and simple, and the control system runs more stably.

15. It can be stopped to adjust any parameters, display production speed and batch, and also has equipment fault self diagnosis function. It can store 100 sets of parameters, make product replacement more convenient and fast, and provide an Ethernet port for easy access to the EMS system.
