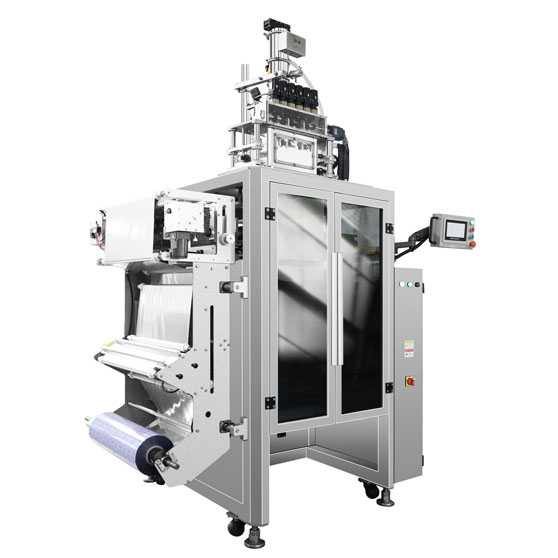

This machine is suitable for automatic measurement and packaging of granular materials in food, medicine, and chemical products. After packaging, it can prevent oxidation, mold, decay, moisture, etc., and extend the storage life of products by ensuring quality and freshness. It meets the trend requirements of Industry 4.0 and can be connected to SCADA and MES systems.
| Machine Name | Powder Stick Packing Machine |
| Model | LC500B+P50-8/LC500BS+P50-8 |
| No. of Lanes | 8 |
| Metering system | Custom long screws |
| Bags/Minute | 20-80 cuts/min |
| Film roll width | Max.500mm |
| Film roll inner diameter | 75mm |
| Film roll outer diameter | Max.400mm |
| Bag width | 16-50mm |
| Bag length | 40-160mm |
| Sealed type | Back seal/triple seal/Four-sided seal |
| Cut type | Fillet cut / flat cut / serrated cut |
| Power | 220V 1P 50 or 60HZ/11KW |
| Air consumption | 65-80L/min（0.6-0.8MPa） |
| Machine weight | about 1200KG |
| Film material thickness | 0.06-0.1 mm |
| Film material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Anti-static device/Ribbon coding machine/Vacuum feeding machine/ laser marking machine/Finished product conveyor/Screw air compressor |
The fully automatic powder packaging machine is widely used in the automatic packaging of loose powder products in industries such as medicine and health food, such as (pharmaceutical) powder, probiotics, protein powder, meal substitute powder, spirulina powder, instant coffee powder, lotus root powder, tea powder, pearl powder, seasoning, etc.
1.Anti fingerprint: This device is easy to clean
2.Automatic correction function: integral film frame, supply film tension control system to ensure stable bag making
3.System configuration: Adopting programmable bus system+bus servo, fast response and more accurate
4.Color control: Using color sensors to capture the color dots on the packaging film, ensuring the integrity of the pattern
5.Applicable to digital factories: In response to the trend requirements of Industry 4.0, it can be connected to SCADA and MES systems
6.12 common operating languages: easy to operate, with device fault prompts and self diagnostic functions
7.Safety and certification: Compliant with GMP production standards, EU CE certification for the entire machine, CUL certification for electrical configuration
8.Food grade stainless steel: The entire machine is made of SUS304 stainless steel, and the part in contact with the material is made of SUS316
9.Vertical sealing feature: The vertical 45 ° sealing device has a good vertical sealing effect and can be opened from the middle to both sides for easy maintenance
10.Temperature control method: Bus type temperature module with independent temperature control, temperature display and setting are operated within the touch screen
11.Automatic recognition system for broken or missing film: automatic alarm shutdown, film rolling correction docking device
