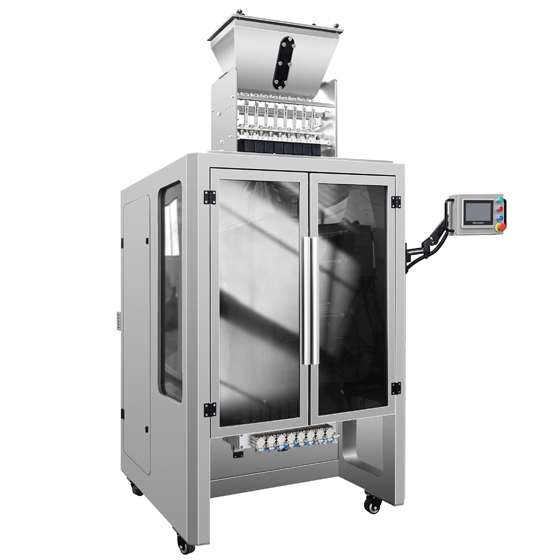

6 Lane Sugar Packaging Machine

Using motion bus PLC control, with multi-language touch screen display, intuitive operation, simple, control system operation is more stable, can stop to adjust any parameters, display production speed, batch, also has equipment fault self-diagnosis function, can store 100 sets of parameters, replacement varieties are more convenient and fast, and provide Ethernet port for easy access to the EMS system.

GET QUOTE

Parameter
Application
Advantage
Video

Machine Name	multi lane granule pack machine
Model	LC500B+G50-6/LC500BS+G50-6
No. of Lanes	6

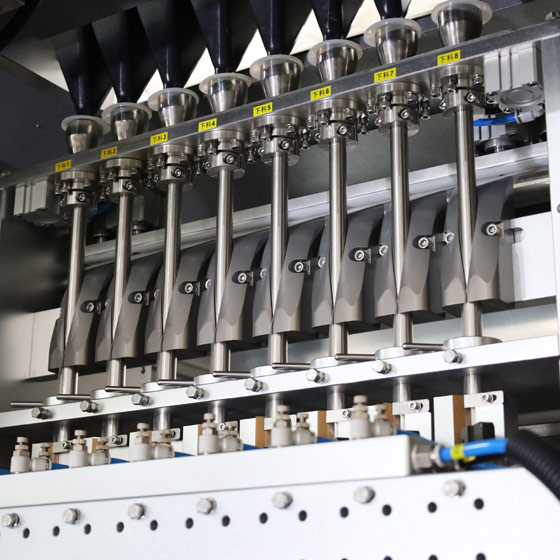

Metering system	Swinging measuring cup
Bags/Minute	20-80 cut/min
Film roll width	Max.500mm
Film roll inner diameter	75mm
Film roll outer diameter	Max.400mm
Bag width	16-50mm
Bag length	40-160mm
Sealed type	Back seal/triple seal
Cut type	Fillet cut / flat cut / serrated cut
Power	220V 1P 50 OR 60HZ/11KW
Air consumption	65-80L/min（0.6-0.8MPa）
Machine weight	1200KG
Film material thickness	0.06-0.1 mm
Film material	OPP/CPP, OPP/PE, BOPP/VMPET/PE etc.
Optional	Diaphragm pump/Ribbon coding machine/ Vacuum feeding machine/laser marking machine/ Finished product conveyor/ Magnetic pump filling machine

The machine is suitable for the packaging of various granular materials with uniform density (granulated sugar, pharmaceutical granules, coffee granules, granule desiccant, etc.).The equipment has the characteristics of fast packaging speed, high precision, low energy consumption and labor saving.It can be widely used in cosmeceutical, food, pharmaceutical, health care products and other industries.

1.Efficient anti-fingerprint，the device is easy to clean.

2.Automatic deviation correction，the overall film frame, the film tension control system ensures the stability of bag making.

3.programmable bus system + bus servo, fast response and more accurate.

4.The color sensor is used to grab the color punctuation points of the packaging film to ensure the integrity of the pattern.

5.In response to the requirements of Industry 4.0 trend, it can be connected to SCADA and MES systems.

6.12 commonly used operation languages，simple operation, with equipment fault prompt, self-diagnosis function.

7.Comply with GMP production standards, the whole machine is CE certified, and the electrical configuration is CUL certified.

8.The whole machine is made of SUS304 stainless steel, and the part in contact with the material is made of SUS316.

9.bus type temperature module and independent temperature control, temperature display and setting are operated in the touch screen.

10.Automatic identification system for film breakage and film shortage: automatic alarm shutdown, film roll correction and docking device.

11.Easier maintenance，all parts in contact with the packaged material can be quickly disassembled and installed.

12.Vertical 45° sealing device has good longitudinal sealing effect and can be opened from the middle to both sides for easy maintenance.
