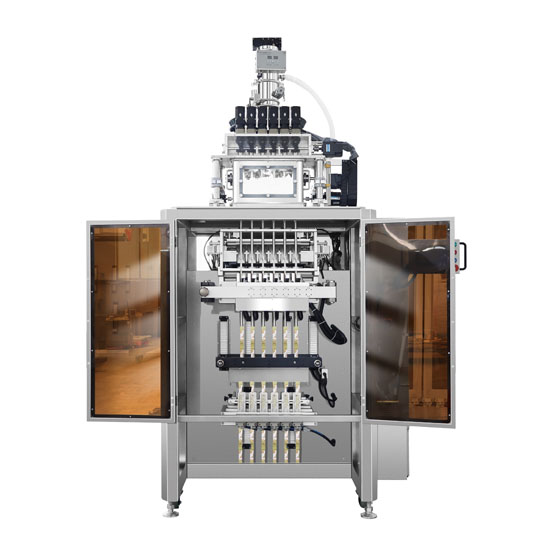

6 Lane Probiotics Stick Packaging Machine

This automatic powder packaging machine is widely used in the automatic packaging of loose powdered products in medicine, health food and other industries, such as (pharmaceutical) powder, probiotics, protein powder, meal replacement powder, spirulina powder, instant coffee powder, lotus root powder, tea powder, pearl powder, seasoning, etc.

1. Provide 12 commonly used operating languages to make operations and parameter settings simple and fast, with strong global universality

2. The ultraviolet UV germicidal lamp is installed at the place where the roll film is pulled to preliminarily disinfection and sterilization the roll film.

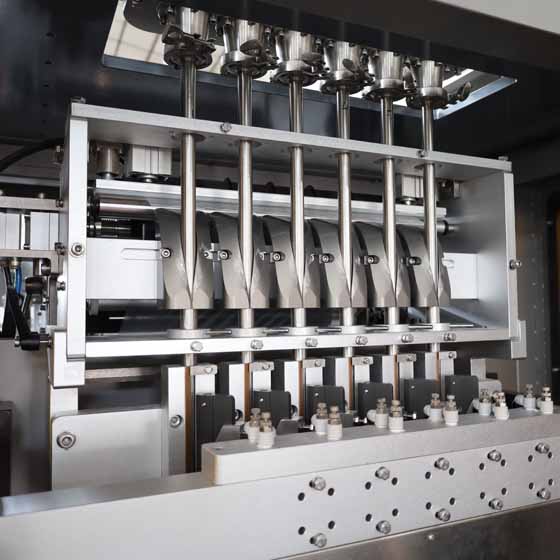

3. The powder screw filling part can be quickly disassembled and replaced (5 minutes), and the height can be adjusted by touching the touch screen.

4. In response to the trend of Industry 4.0, machines are equipped with Ethernet interfaces as standard, which can connect SCADA and MES.

5. The low center of gravity and overload foot cup is combined with casters, which are convenient for transportation and movement. The foot cup is used to fix equipment during production.

6. Advanced German molding technology, automatic correction of the overall film frame, and supply film tension control system to ensure high-speed and stable bag making

7. The exposed components of the entire machine are made of food grade SUS304 stainless steel, and the contact material is made of food grade SUS316L stainless steel, which meets GMP standards (including customer feedback and machine weight)

8. Servo bag pulling and servo horizontal sealing are the responsibility of two motors. Bus servo control can achieve high-speed and high-precision synchronous cooperation. In addition, the use of high-precision color code electric eyes to grasp the color code will result in better bag length and accuracy. Servo horizontal sealing can be set to the opening and closing degree according to the needs through the process sequence, achieving energy conservation, noise reduction, and efficiency

9. Adopting a bus type temperature module and independent temperature control, the temperature display and setting are operated within the touch screen, with a beautiful and direct interface, and a temperature accuracy of plus or minus 0.5. The heating and moving parts are both hidden inside the protective cover, which meets CE safety standards and is safe and reliable. The temperature control settings can be stored as formulas and can be accessed with just one click.
