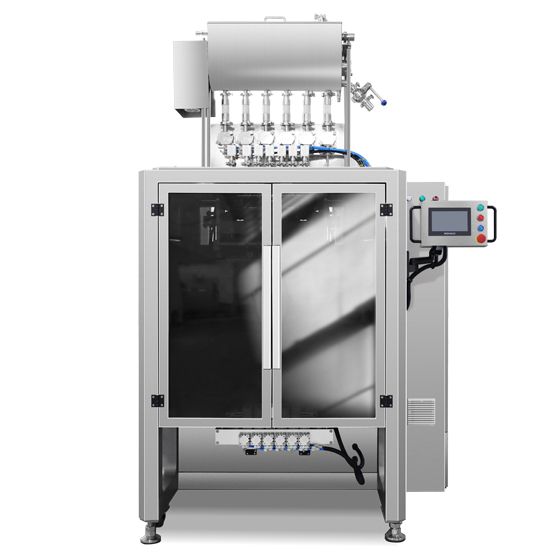

4 Lane Automatic Tomato Sauce Packaging Machine

4 Lane Automatic Tomato Sauce Packaging Machine

This equipment can be widely used in industries such as cosmetics, food, medicine, and health products. It has the characteristics of fast packaging speed, high accuracy, low energy consumption, and labor saving. The entire machine is made of SUS304 stainless steel, and the contact material part is made of SUS316

GET QUOTE

Parameter
Application
Advantage
Video

Model	multi-lane liquid packing machine
No. of Lanes	LC320B+9832G-06N-4/LC320BS+9832G-06N-4
Metering system	4
Bags/Minute	Piston pump
Film roll width	20-80cut/min
Film roll inner diameter	Max.320mm
Film roll outer diameter	75mm
Bag width	Max.400mm
Bag length	16-50mm
Sealed type	40-160mm
Cut type	Back seal/triple seal
Power	Fillet cut / flat cut / serrated cut
Air consumption	65-80L/min（0.6-0.8MPa）
Machine weight	700KG
Film material thickness	0.06-0.1 mm
Film material	OPP/CPP, OPP/PE, BOPP/VMPET/PE etc.
Option	Diaphragm pump/Ribbon coding machine/ Vacuum feeding machine/laser marking machine/ Finished product conveyor/ Magnetic pump filling machine

This product is applicable to the packaging of all kinds of liquid, solid-liquid coexisting creams (jam (with residue), cat strips, face cream, facial cleanser, shower gel, sauce, seasoning, tomato sauce, honey, etc.). This device has the characteristics of fast packaging speed, high accuracy, low energy consumption, and labor saving.

1.Efficient anti-fingerprint,the device is easy to clean.

2. the overall film frame, the film tension control system ensures the stability of bag making.

3.programmable bus system + bus servo, fast response and more accurate.

4.The color sensor is used to grab the color punctuation points of the packaging film to ensure the integrity of the pattern.

5. In response to the requirements of Industry 4.0 trend, it can be connected to SCADA and MES systems.

6.12 commonly used operation languages,simple operation, with equipment fault prompt, self-diagnosis function.

7.Comply with GMP production standards, the whole machine is CE certified, and the electrical configuration is CUL certified.

8.The whole machine is made of SUS304 stainless steel, and the part in contact with the material is made of SUS316.

9.bus type temperature module and independent temperature control, temperature display and setting are operated in the touch screen.

10.Automatic identification system for film breakage and film shortage,automatic alarm shutdown, film roll correction and docking device.

11.all parts in contact with the packaged material can be quickly disassembled and installed.

12.Vertical 45° sealing device has good longitudinal sealing effect and can be opened from the middle to both sides for easy maintenance.
