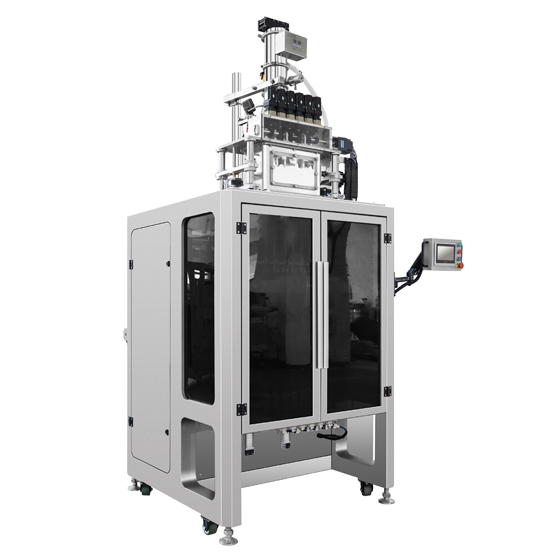

10 Lane Meal Replacement Powder Packaging Machine

10 Lane Meal Replacement Powder Packaging Machine

It can be widely used in cosmeceutical, food, pharmaceutical, health care products and other industries.12 common operating languages, easy to operate, with equipment fault prompts and self diagnostic functions. Compliant with GMP production standards, certified by the European Union CE for the entire machine, and certified by CUL for electrical configuration

GET QUOTE

Parameter
Application
Advantage
Video

Machine Name	Powder Stick Packing Machine
Model	LC800B+P50-10/LC500BS+P50-10
No. of Lanes	10

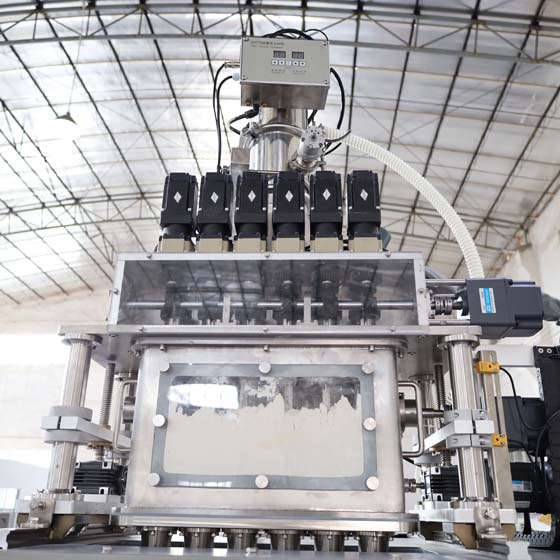

Metering system	Custom long screws
Bags/Minute	20-80 cuts/min
Film roll width	Max.800mm
Film roll inner diameter	75mm
Film roll outer diameter	Max.400mm
Bag width	16-50mm
Bag length	40-160mm
Sealed type	Back seal/triple seal/Four-sided seal
Cut type	Fillet cut / flat cut / serrated cut
Power	220V 1P 50 or 60HZ/11KW
Air consumption	65-80L/min（0.6-0.8MPa）
Machine weight	about 1400KG
Film material thickness	0.06-0.1 mm
Film material	OPP/CPP, OPP/PE, BOPP/VMPET/PE etc.
Optional	Anti-static device/Ribbon coding machine/Vacuum feeding machine/ laser marking machine/Finished product conveyor/Screw air compressor

The fully automatic powder packaging machine is widely used in the automatic packaging of loose powder products in industries such as medicine and health food, such as (pharmaceutical) powder, probiotics, protein powder, meal substitute powder, spirulina powder, instant coffee powder, lotus root powder, tea powder, pearl powder, seasoning, etc.

1.Efficient anti-fingerprint,the device is easy to clean.

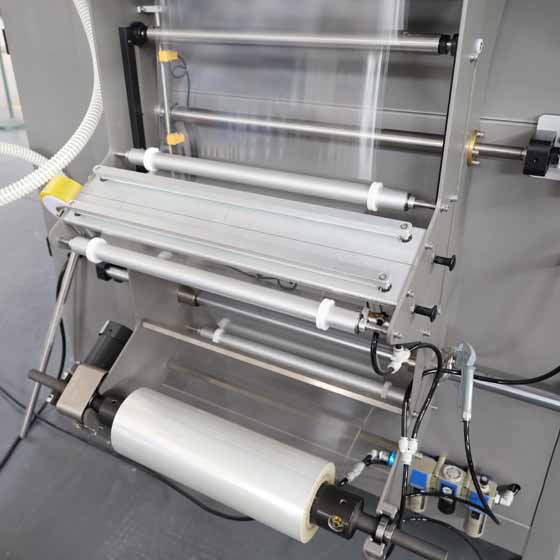

2.Automatic deviation correction,the overall film frame, the film tension control system ensures the stability of bag making.

3.programmable bus system + bus servo, fast response and more accurate.

4.The color sensor is used to grab the color punctuation points of the packaging film to ensure the integrity of the pattern.

5.Applicable to digital factory,In response to the requirements of Industry 4.0 trend, it can be connected to SCADA and MES systems.

6.12 commonly used operation languages,simple operation, with equipment fault prompt, self-diagnosis function.

7.Comply with GMP production standards, the whole machine is CE certified, and the electrical configuration is CUL certified.

8.The whole machine is made of SUS304 stainless steel, and the part in contact with the material is made of SUS316.

9.bus type temperature module and independent temperature control, temperature display and setting are operated in the touch screen.

10.Automatic identification system for film breakage and film shortage,automatic alarm shutdown, film roll correction and docking device.
